Porch Elevator Vertical Platform Wheel Chair Lift Technical Specifications

Adjacent Access

Straight Through Access


Deck Dimensions (L, D, W)
Access L
Deck Length
D
Deck Width
W
Total Width
Straight Through Access 54" (1372 mm) 34" (864 mm) 48" (1219 mm)
Adjacent Access 54" (1372 mm) 40" (1016 mm) 54" (1372 mm)


Tower Dimensions (H)
 Porch Elevator Vertical Platform Wheel Chair Lift Technical Specifications

Total Travel H
Tower Height
28" (711 mm) Lift Height 48" (1219 mm)
52" (1321 mm) Lift Height 72" (1829 mm)
72" (1829 mm) Lift Height 92" (2337 mm)
96" (2438 mm) Lift Height 118" (2997 mm)
120" (3048 mm) Lift Height 142" (3607 mm)
144" (3658 mm) Lift Height 166" (4216 mm)

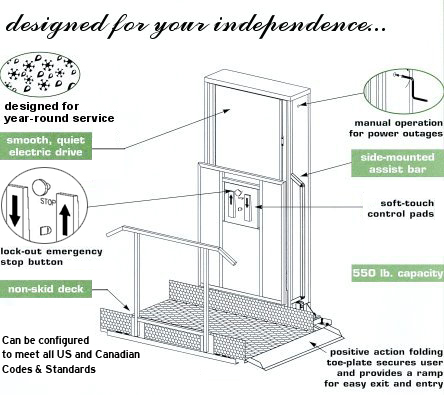

Technical
  • Constant pressure Soft Touch control pads
  • 550 pound (250-kg) lift capacity
  • Constant pressure Soft Touch control pads
  • 8 feet/minute lift speed
  • Direct worm gear/acme screw drive
  • Non-load-bearing backup safety nut on lift shaft
  • Low maintenance
  • Expanded metal platform with full under platform visibility and non skid surface
  • 8" positive action, reversible toe-plate for universal access
  • Emergency manual operation
  • Fuse box accessible from carriage
  • Quick and easy set-up and adjustment
  • Baked on Powder Coat finish
  • Extreme Weather resistant design
  • U.L. and C.S.A. Certified
